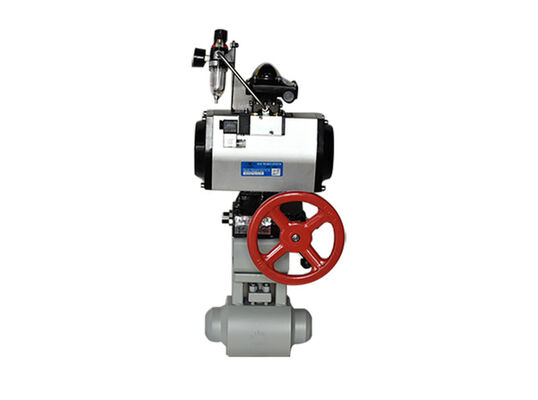

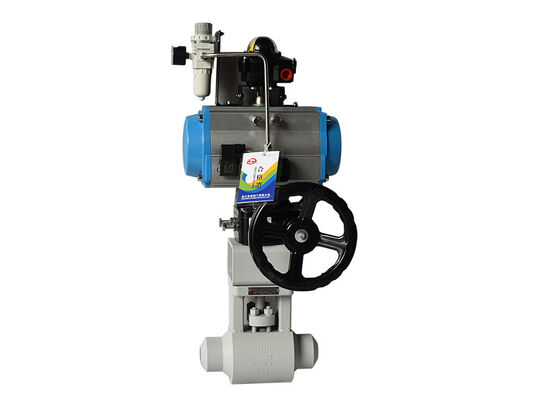

High Temperature Pneumatic Butterfly Valve with Lockout Feature and ANSI CLASS 150-900 Pressure Rating

High Temperature Pneumatic Butterfly Valve with Lockout Feature and ANSI CLASS 150-900 Pressure Rating

Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа: 1
Лучшая цена контакт

Подробная информация
Модель №.: ВМ-54 Форма подключения: сварка
Режим вождения: Пневматический Номинальное давление: ANSI КЛАСС 150-900
Канал: Прямо через тип Структура: Фиксированный шариковый клапан
Тип: Фиксированный шариковый клапан Функция: Осушать
Температура: высокая температура Стандартный: 12 месяцев в гарантии
Приложение: Промышленное использование код HS: 84123900
Выделить:

High Temperature Pneumatic Butterfly Valve

,

Lockout Feature Actuated Butterfly Valve

,

ANSI CLASS 150-900 Pneumatic Actuator Valve

Характер продукции





Veson valve ltd 3 position pneumatic actuators provide an operation of 0°- 45°- 90°. The intermediate position is achieved by an external mechanical stop of movement on the 2 auxiliary pistons (for spring return actuators it may be only one auxiliary piston).



 This intermediate stop position is adjustable from 0° to 90°, for example 5°, 20°, 30° 50°, 75° etc. The intermediate position is easily achieved by adjusting the external nuts located outside the two end-caps. Both type, double acting and spring return, are available. Field of application: For dosing, for exact filling and for any kind of services where on 90° rotation an intermediate stop position is desired







High Temperature Pneumatic Butterfly Valve with Lockout Feature and ANSI CLASS 150-900 Pressure Rating 0High Temperature Pneumatic Butterfly Valve with Lockout Feature and ANSI CLASS 150-900 Pressure Rating 1







  • A182 F92 body material available on select models.
  • Lockout feature integrated into handle adaptor, which accommodates customer's lockout device in open and closed positions.
  • Handle can be repositioned to any location along its length. Can be applied as a T-handle or used full length.
  • Flow arrow forged into mounting flange visible above insulation.
  • Complies with ASME B16.34 requirements.
  • Socketweld ends per ASME B16.11.
  • Blank configuration for buttweld and customer end connections.
  • Actuator mounting per MSS SP-101.
