Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа: 1
Лучшая цена контакт

Подробная информация
Модель №.: ВС-075 Форма соединения: Намюр и ISO5211
Канал: Прямо через тип Структура: Поршень
Тип: Стойка и шестерня Температура: Нормальная температура
Стандартный: ISO5211 Приложение: Промышленное использование, промышленное использование воды
Транспортный пакет: Фанерный пакет корпусов Спецификация: 1 дюйм-12 дюйма
Торговая марка: Весон или Кузомер "с Источник: Китай
Код HS: 8481804090 Производственная мощность: 50000pc / y
Выделить:

Pneumatic rack and pinion actuator 70NM torque

,

Corrosion resistant pneumatic actuator

,

Namur connection rack and pinion actuator

Характер продукции

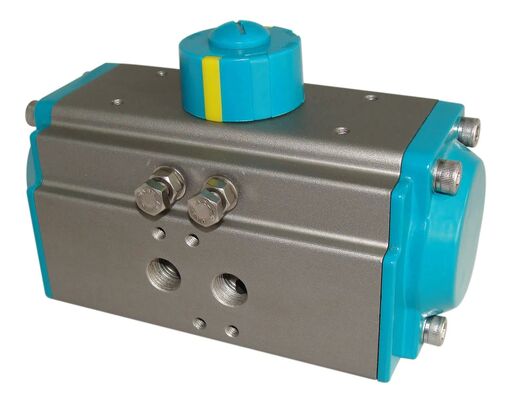

VS-075 (rack& pinion) have the following features.
> The output torque: Double: 70NM; Single: 11~26Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.

> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
