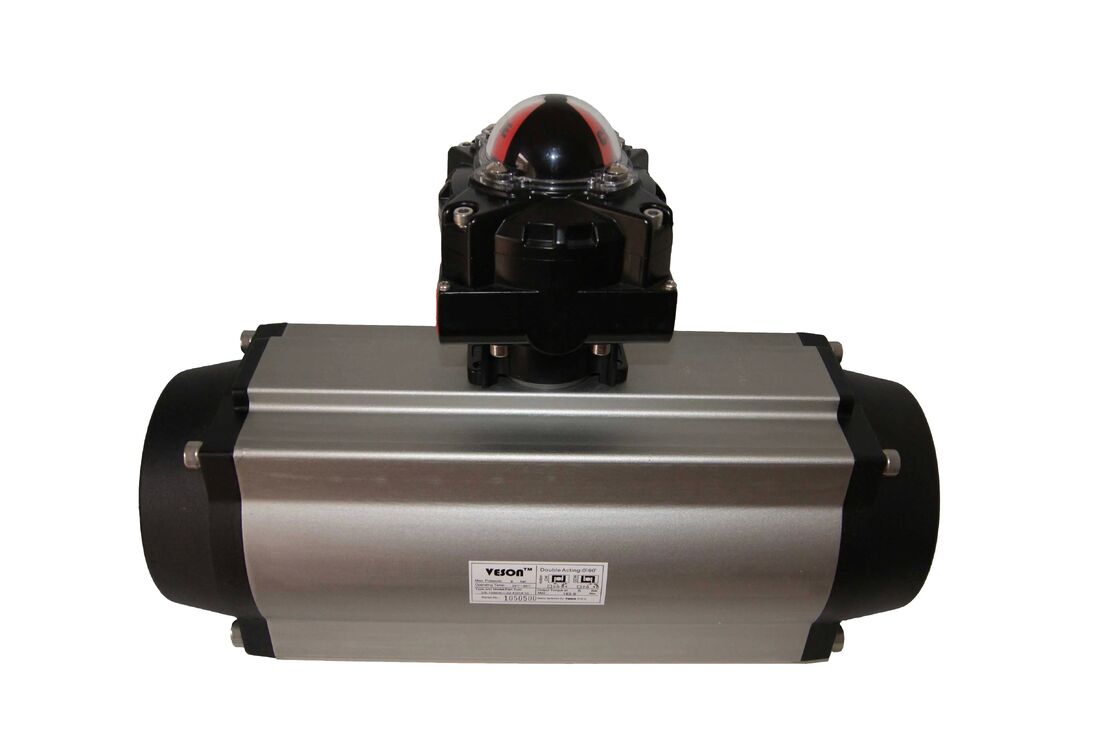

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Подробная информация о продукте:
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|
|
Подробная информация |
|||
| Модель №.: | ВС-210 | Власть: | Пневматический |
|---|---|---|---|
| Стандартный: | Стандартный | Направление давления: | Цилиндр двойного действия |
| Двух-действуя тип цилиндра: | Двойной цилиндр штанги | Особенный тип цилиндра: | Количество цилиндров |
| Тип цилиндра комбинации: | Дагочный цилиндр | Стандарт дизайна: | ISO5211 DIN3337 |
| Транспортный пакет: | Фанерный пакет корпусов | Спецификация: | 1 дюйм-12 дюйма |
| Торговая марка: | Весон или Кузомер "с | Источник: | Китай |
| Код HS: | 84123900 | Производственная мощность: | 50000pc / y |
| Выделить: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Характер продукции
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
