Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа: 1
Лучшая цена контакт

Подробная информация
Модель №: VS-063DA Форма соединения: Фланец
Структура: Центральное герметизация Форма печати: Сила запечатана
Клапан стебель: Нормальный Рабочее давление: Среднее давление (2,5 МПа <PN <6,4 МПа)
Рабочая температура: Средняя температура (120°C Уплотнение материал: Мягкий герметичный
Корпус клапана: Листовой металл Спецификация размера: 2 дюйма-24 дюйма
Привод давление воздуха: 80-120 фунтов на квадратный дюйм Срок службы цикла привода: 1 миллион циклов
Привод дизайн: шестерня шкафа Погода. Рейтинг: IP66 и IP68
Монтажный стандарт: ISO5211
Выделить:

Mid-Pressure Air Actuated Butterfly Valve

,

Medium Temperature Butterfly Valve

,

2 inch-24 inch Pneumatic Butterfly Valve

Характер продукции

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended lifespan with unique wave line seat and special disc shape design
  • Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
  • Increased flow capacity through unique profile disc and two-piece shaft design
  • Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack pinion design for reliable operation
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof rating
  • Anodized aluminum body with epoxy-polyester covers
  • Compatible with dry or lubricated pilot air
  • Namur & ISO mounting options
Product Images

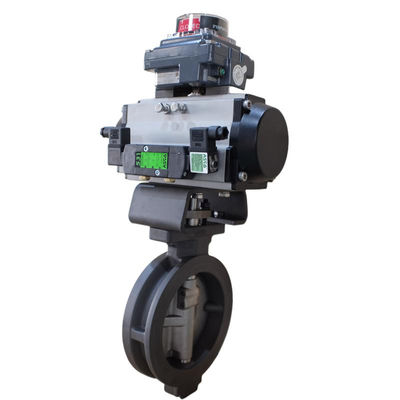

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 0

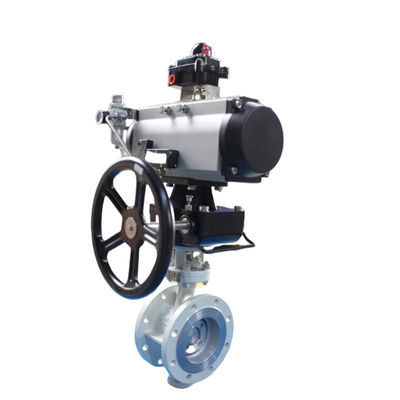

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 1

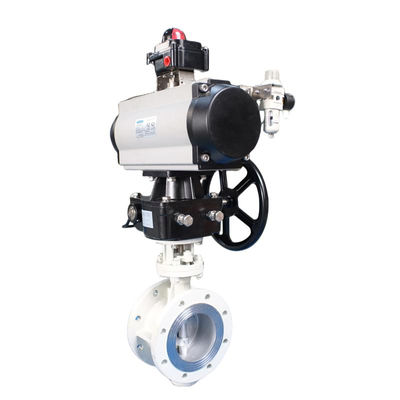

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 2
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 3

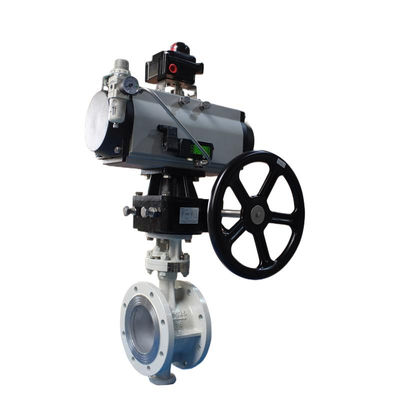

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 4

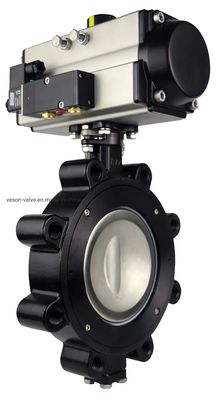

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 5
